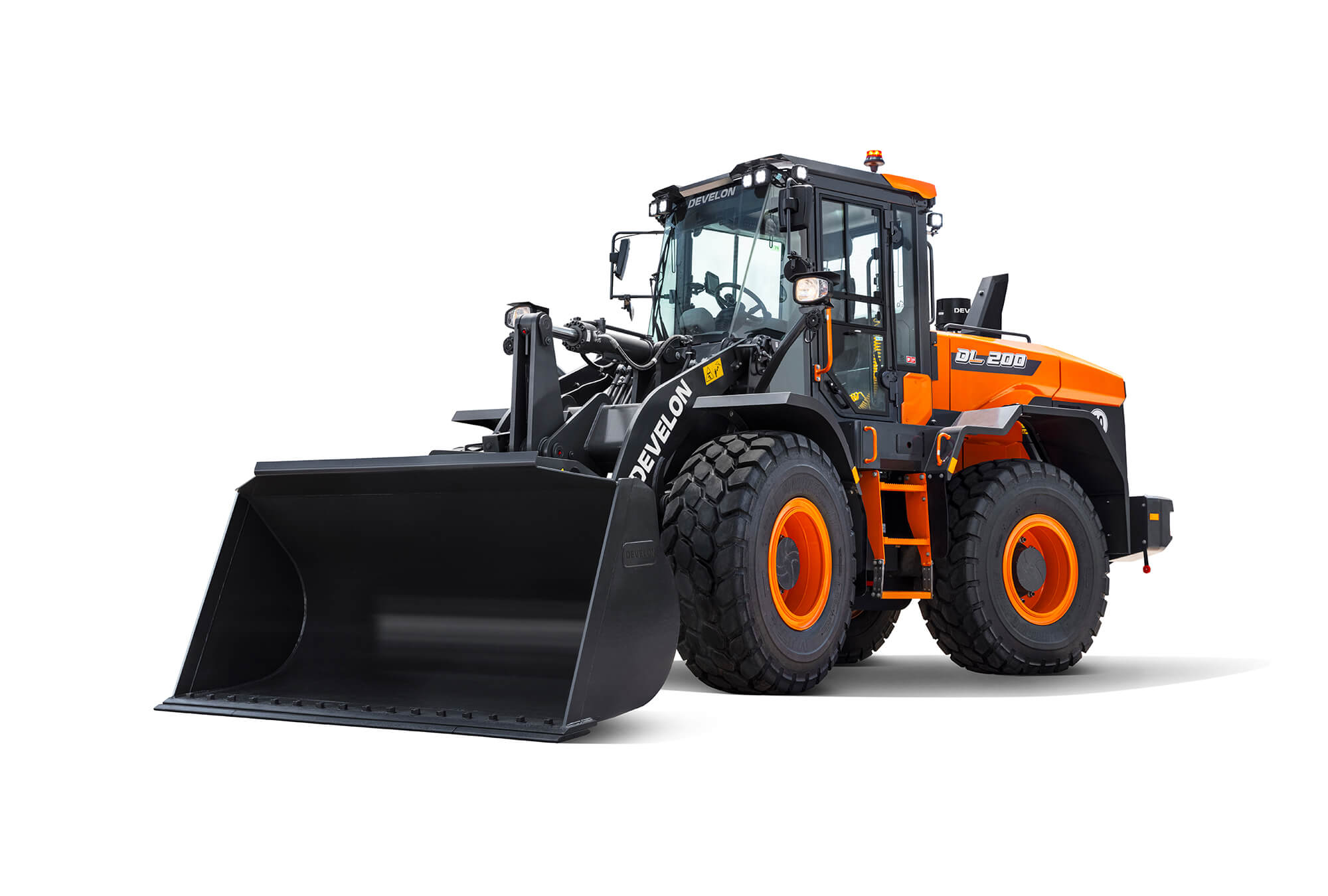

DL200-7
Boost your productivity with the new DL200-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level.
The DL200-7 enhances your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient. Perkins 1204J engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.
Download Brochure
Find a DealerGeneral Purpose Buckets
General purpose | |
|---|---|
| Straight side cutter, teeth, width 2550 mm | 1.9 m³ |
| Straight side cutter, Bolt-on cutting edge, width 2550 mm | 2.0 m³ |
| Performance bucket - straight side cutter, teeth, width 2550 mm | 2.2 m³ |
| Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm | 2.2 m³ |
Material handling | |
|---|---|
| Convex side cutter, teeth, width 2550 mm | 2.2 m³ |
| Convex side cutter, Bolt-on cutting edge, width 2550 mm | 2.2 m³ |
Machine Specs
| Bucket capacity | 2.0 m³ |
| Tipping load | 10.124 kg |
| Static tipping load, at 40° | 8.933 kg |
| Length with bucket | 7.208 mm |
| Width with bucket | 2.539 mm |
| Height | 3.313 mm |
| Dump height (at 45°) with bolt-on cutting edge | 2.718 mm |
| Dump reach (at 45°) with bolt-on cutting edge | 961 mm |
| Wheelbase | 2.980 mm |
| Engine | Perkins 1204J Stage V (4-cylinder) |
| Operating weight | 12.047 kg |
| Engine power | 106 kW (144 CV) @ 2000 giri/min |
| Breakout force | 98 kN |
