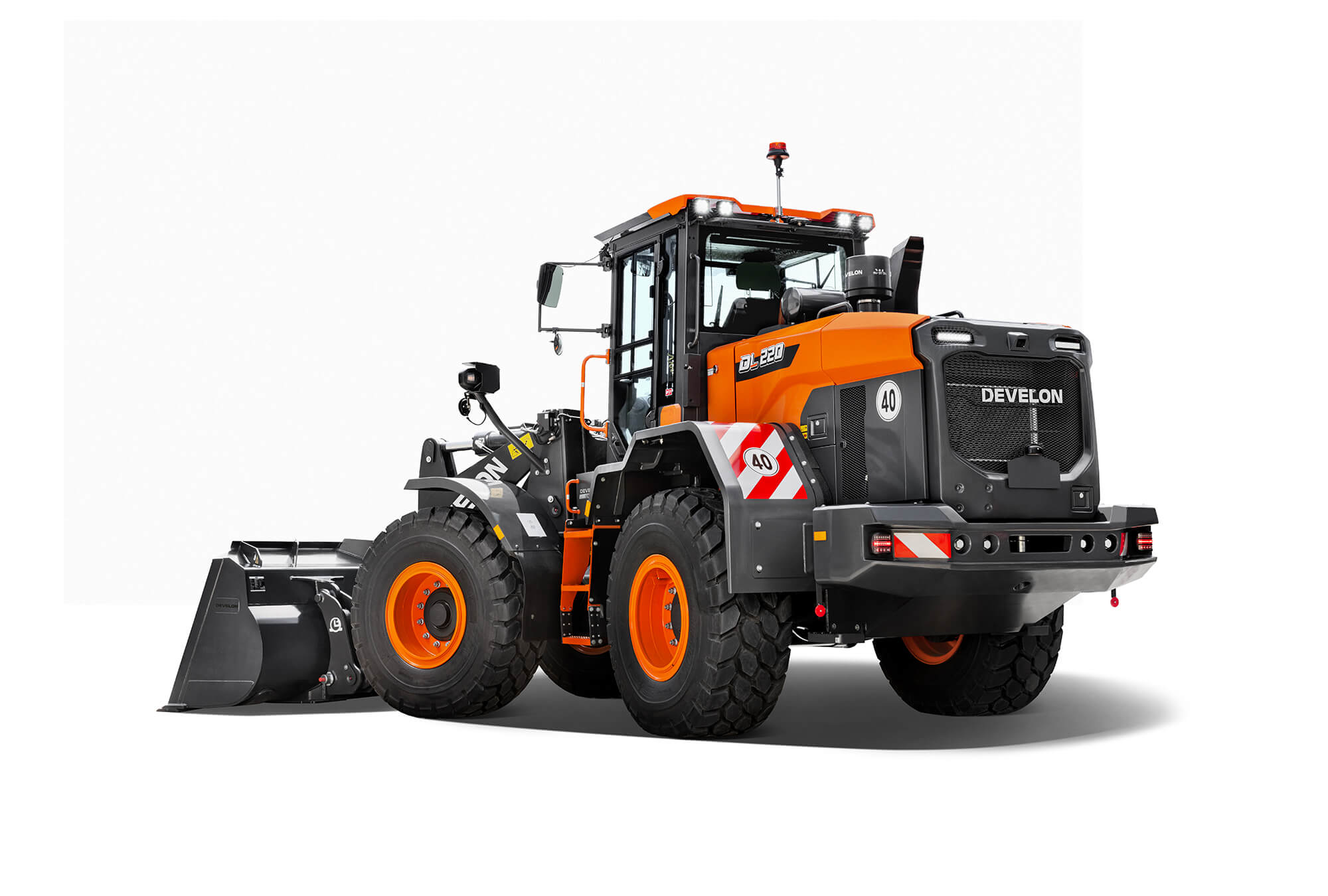

DL220-7

Boost your productivity with the new DL220-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level.


The DL220-7 enhances your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials.

Download BrochureFind a Dealer
General Purpose Buckets

General purpose

Straight side cutter, teeth, width 2550 mm 2.2 m³
Straight side cutter, Bolt-on cutting edge, width 2550 mm 2.3 m³
Performance bucket - straight side cutter, teeth, width 2550 mm 2.4 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm 2.5 m³

Material handling

Convex side cutter, teeth, width 2550 mm 2.4 m³
Convex side cutter, Bolt-on cutting edge, width 2550 mm 2.5 m³
Machine Specs
Bucket capacity2.3 m³
Tipping load10.652 kg
Static tipping load, at 40°9.383 kg
Length with bucket7.458 mm
Width with bucket2.539 mm
Height3.313 mm
Dump height (at 45°) with bolt-on cutting edge2.784 mm
Dump reach (at 45°) with bolt-on cutting edge1.010 mm
Wheelbase3.050 mm
EngineDevelon DL06 Stage V (6-cylinder)
Operating weight13.198 kg
Engine power119 kW (160 HP) at 2100 rpm
Breakout force97 kN
