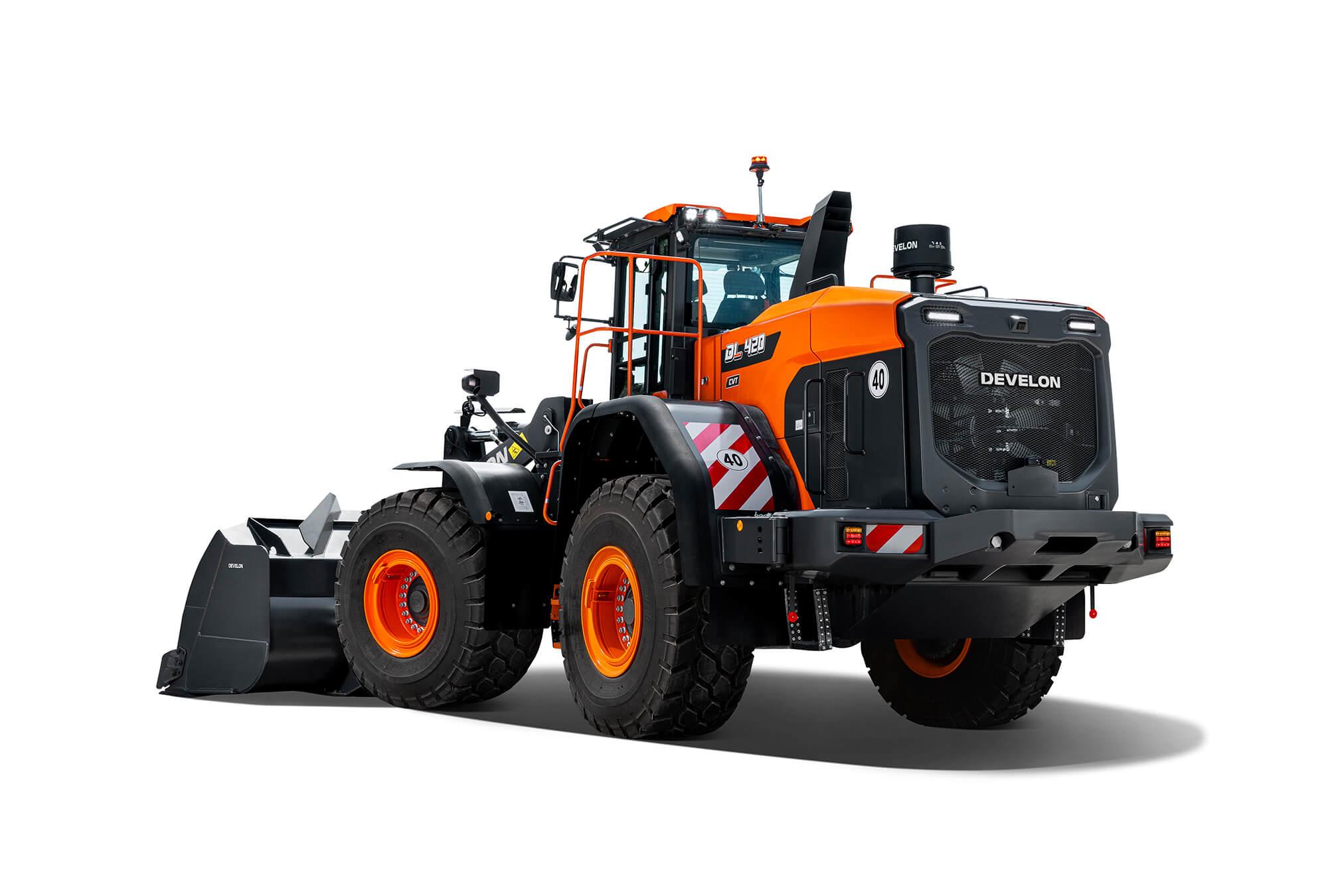

DL420CVT-7
The new DL420CVT-7 Stage V wheel loader, featuring a completely new design, providing higher performance, increased fuel efficiency and a much enhanced environment for the operator compared to the previous Stage IV model.
The DL420CVT-7 enhances your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient.Scania DC9 engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.
Download Brochure
Find a DealerGeneral purpose buckets
General purpose | |
|---|---|
| Straight side cutter, teeth, width 3200 mm | 4.3 m³ |
| Straight side cutter, Bolt-on cutting edge, width 3200 mm | 4.5 m³ |
| Performance bucket - straight side cutter, teeth, width 3000 mm | 4.4 m³ |
| Performance bucket - straight side cutter, Bolt-on cutting edge, width 3000 mm | 4.5 m³ |
Material handling | |
|---|---|
| Convex side cutter, teeth, width 3000 mm | 4.7 m³ |
| Convex side cutter, Bolt-on cutting edge, width 3000 mm | 4.9 m³ |
Machine Specs
| Bucket capacity | 4.5 m³ |
| Tipping load | 18.696 kg |
| Static tipping load, at 40° | 16.493 kg |
| Length with bucket | 8.926 mm |
| Width with bucket | 3.200 mm |
| Height | 3.660 mm |
| Dump height (at 45°) with bolt-on cutting edge | 2.990 mm |
| Dump reach (at 45°) with bolt-on cutting edge | 1.320 mm |
| Wheelbase | 3.525 mm |
| Engine | Scania DC9 Stage V (5-cylinder) |
| Operating weight | 23.990 kg |
| Engine power | 240 kW (326 HP) at 1800 rpm |
| Breakout force | 171 kN |
