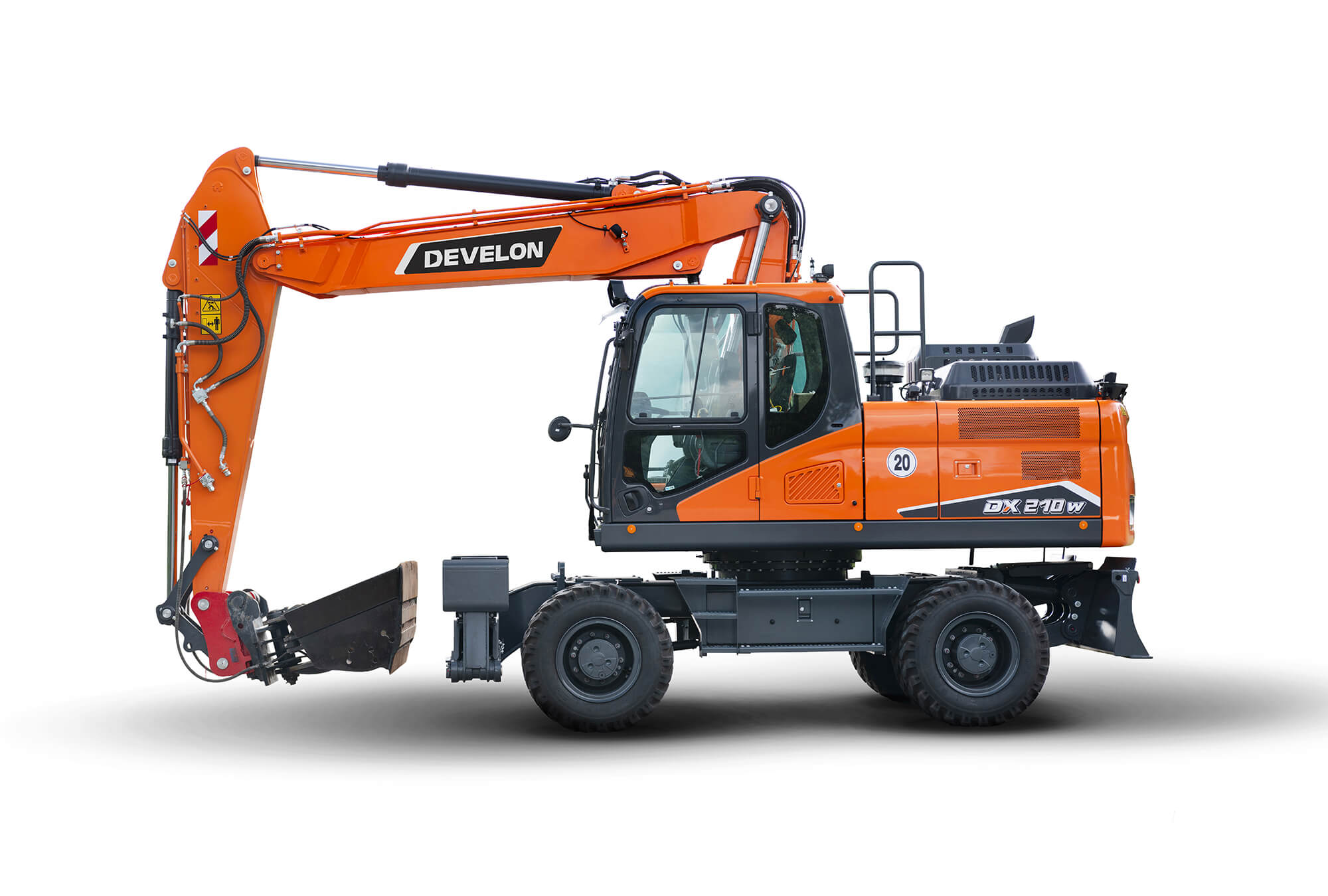

DX210W-7
New DX210W-7 Wheeled Excavator offers a host of redesigned features and new technologies to ensure smooth
operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful machine will give your job site a huge boost.
Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. Rear and right side cameras as standard, anti-slip steps and platforms, as well as guard rails on upper structure. Optional: a 360° all-around view camera (AVM) can be linked with unique ultrasonic detection for maximum safety while working with people around. Large side mirrors, 9 powerful LED work lights (4 additional lights possible as an option), travel alarm.
Download Brochure
Find a DealerMachine Specs
| Maximum power | 189 hp |
| Operating weight | 21.900 kg |
| Bucket capacity | 0.86 m3 |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Engine power | 141 kW / 189 hp at 1900 rpm |
| Main pumps max flow | 2 x 236 l/min |
| Maximum swing speed | 9.8 rpm |
| Maximum swing torque | 6387 kgf·m |
| Travel speed (creep/low/economy/high) | 4 / 9 / 33 / 35 km/h |
| Maximum traction force | 12.000 kg |
| Minimum turning radius | 7.2 m |
| Max. digging reach | 9.980 mm / 9.410 mm |
| Max. digging depth | 5.555 mm / 6.160 mm |
| Max. loading height | 6.985 mm / 7.620 mm |
| Max. digging height | 9.770 mm / 10.140 mm |
